During the process of raising broiler chickens, the traditional manure scraper is inefficient and the equipment often breaks down, causing great trouble for the managers. How can we completely get rid of this inefficient and high-risk manure removal mode? Retech Farming offers you a one-stop environmental protection solution from “efficient manure removal” to “resource utilization”.
1.The disadvantages of the traditional manure removal method in chicken farms
· High equipment failure rate: The mechanical structure of the manure scraper is complex, with jamming and rope breakage being common occurrences. The maintenance cost is high and time-consuming, requiring a lot of effort.
· Poor environment: Failure to remove manure in time leads to accumulation of chicken manure, increasing the ammonia concentration. This not only damages equipment but also poses a threat to the health of the chickens.
· High labor costs: Relying on manual cleaning or maintenance, labor costs have become a heavy burden in large-scale farming.

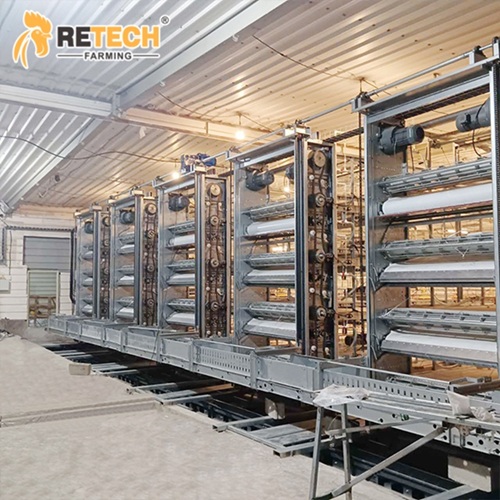

2.The automatic manure removal system of Retech Farming: Intelligent, Efficient, and Stress-Free
All our cage-keeping equipment can be paired with the automatic manure removal system, providing a more stable and efficient chicken manure disposal solution for the farm.
The core advantage of this system lies in:
1.High-strength plastic manure removal belt, more durable and stable
Compared with the problems of traditional manure scraping plates, such as easy clogging and rapid wear, the high-strength plastic manure removal belt operates more smoothly and is suitable for long-term and high-frequency usage environments.
It can continuously transfer chicken manure from under the cages to outside the shed quickly, reducing the need for manual intervention and lowering the occurrence rate of faults.
2. Variable-frequency motor control, automatically matching the load
The RetechFarming automatic manure removal system employs variable-frequency motor control, which can automatically adjust the running speed according to the actual load of the conveyor belt.
This means that the system will not constantly operate at a fixed speed but can more intelligently adapt to different working conditions, thereby:
- Reducing motor load
- Reducing mechanical wear
- Improving operational stability
- Reducing the risks of jamming and belt breakage

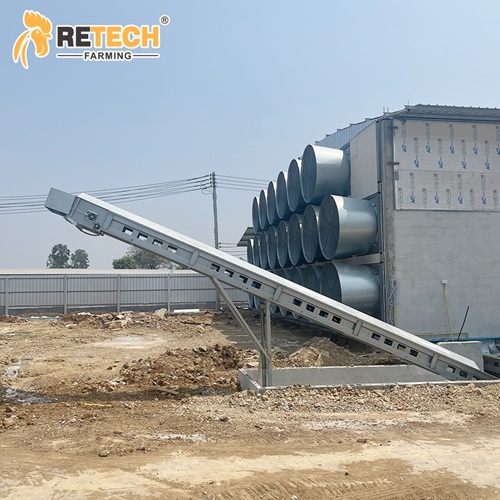

3. Quick Removal of Chicken Manure
The chicken manure is quickly transported outside the shed, effectively reducing the ammonia concentration inside the shed and providing a dry and fresh environment for the chickens to grow, thereby increasing the survival rate and growth rate of the broilers.

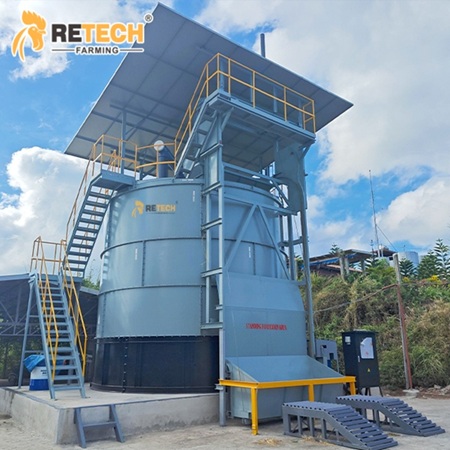

3.Companion chicken manure treatment equipment – Fermentation tank
Cleaning the manure is just the first step. Some large-scale farms usually go further to solve the problem of how to handle the chicken manure.
The chicken manure treatment equipment provided by RetechFarming – the fermentation tank, can further ferment the chicken manure and convert it into organic fertilizer, achieving the resource utilization of manure.
The diameter of the fermentation tank is 6m and the height is 8.6m. If you want to install a fermentation tank, you must build a foundation firstly. The size of the cement foundation is 9m*6m. The fermentation tank body is 110 cubic meters and can accommodate 88-90 tons of manure. One fermentation tank can process the manure of 100,000 chickens.
This type of equipment is particularly suitable for farms with a chicken breeding capacity of over 60,000. It can help the farm establish a more comprehensive manure and waste treatment system.

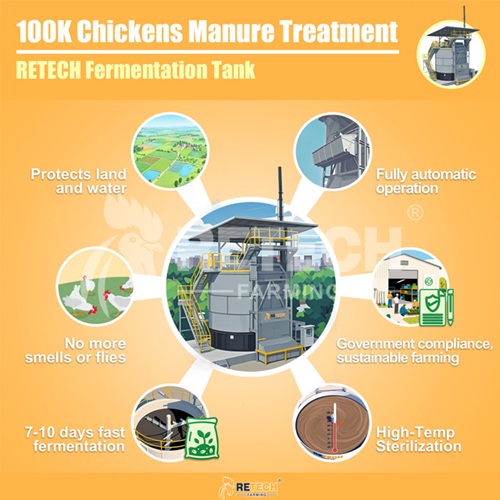

The value of the fermentation tank lies in:
- Converting chicken manure into organic fertilizer
- Reducing odor and secondary pollution
- Reducing the pressure of external transportation for treatment
- Improving resource utilization rate
- Making it easier to meet the standards of the environmental protection bureau
For large-scale chicken farms, chicken manure is no longer merely “waste”, but can be transformed into a valuable resource.
Make manure removal easier, make chicken coops cleaner, and make environmental protection more effortless.
If you have cages on your farm, fresh chicken manure will be produced every day. Especially in a high temperature and high humidity environment, you will face the problem of handling of chicken manure and many flies. If you choose Retech’s energy-saving fermentation tank, it will help you solve the problems of chicken manure and flies in the shortest time and achieve an ideal breeding environment.
